hifast.sep Temperature Calibration#

hifast.sep processes raw data from a single beam, differentiating raw spectral data when the noise diode is on (Cal on) and off (Cal off). It computes the antenna temperature using noise diode data.

Processing Overview#

  1. In FAST’s data, each beam’s data is stored in multiple file blocks, named 0001.fits—9999.fits. Input the path of the first file block (e.g., /proj/20211205/XXX_arcdrift-M02_F_0001.fits) to sequentially process these files.

  2. Determine the noise diode switching cycle using three parameters -d, -m, -n, representing delay time, Cal on time, and Cal off time, each divided by the spectral line sampling time. (Example)

  3. Convert power to antenna temperature:

    \[\begin{split}T_\mathrm{a}^{\mathrm{cal\_off}}(\nu) = \frac{{P_{\mathrm{cal\_off}}}(\nu)}{P_{\mathrm{cal}}(\nu)_{\mathrm{smooth}}} \times T_{\mathrm{cal}}(\nu)_{\mathrm{smooth}},\\ T_\mathrm{a}^{\mathrm{cal\_on}}(\nu) = \frac{{P_{\mathrm{cal\_on}}}(\nu)}{P_{\mathrm{cal}}(\nu)_{\mathrm{smooth}}} \times T_{\mathrm{cal}}(\nu)_{\mathrm{smooth}} - T_{\mathrm{cal}}(\nu)_{\mathrm{smooth}}\end{split}\]

    These formulas yield the antenna temperature excluding noise diode contributions, requiring noise diode temperature \(T_{\mathrm{cal}}\) and response \(P_{\mathrm{cal}}\).

  • \(T_{\mathrm{cal}}\): Uses FAST’s official noise diode temperature file. - --noise_mode: Noise diode strength during observation. Options: high or low; default: high. - --noise_date: Which day’s noise temperature file to use (e.g., 20190115), see Tcal Data Configuration. If set to auto, selects the nearest file to the observation date.

  • \(P_{\mathrm{cal}}\): Derived from the noise diode’s Cal_on spectral line power minus the adjacent Cal_off spectral line power. Regular noise diode activations provide a \(P_{\mathrm{cal}}\) each cycle.

    • Checking \(P_{\mathrm{cal}}\): (--check_cal A, supports if Cal_off sampling number -n is greater than 6). If a noise diode activates on a continuous spectral source or experiences Radio Frequency Interference (RFI), it can’t be used. The program compares the variation in several Cal_off near Cal_on, with a specific variation threshold. Spectral lines are binned by frequency (--freq_step_c), and bins with Cal_off variation exceeding --pcal_vary_lim_bin are marked damaged. A Cal_on with many damaged bins (--pcal_bad_lim_freq) is discarded. Output includes waterfall charts for verification.

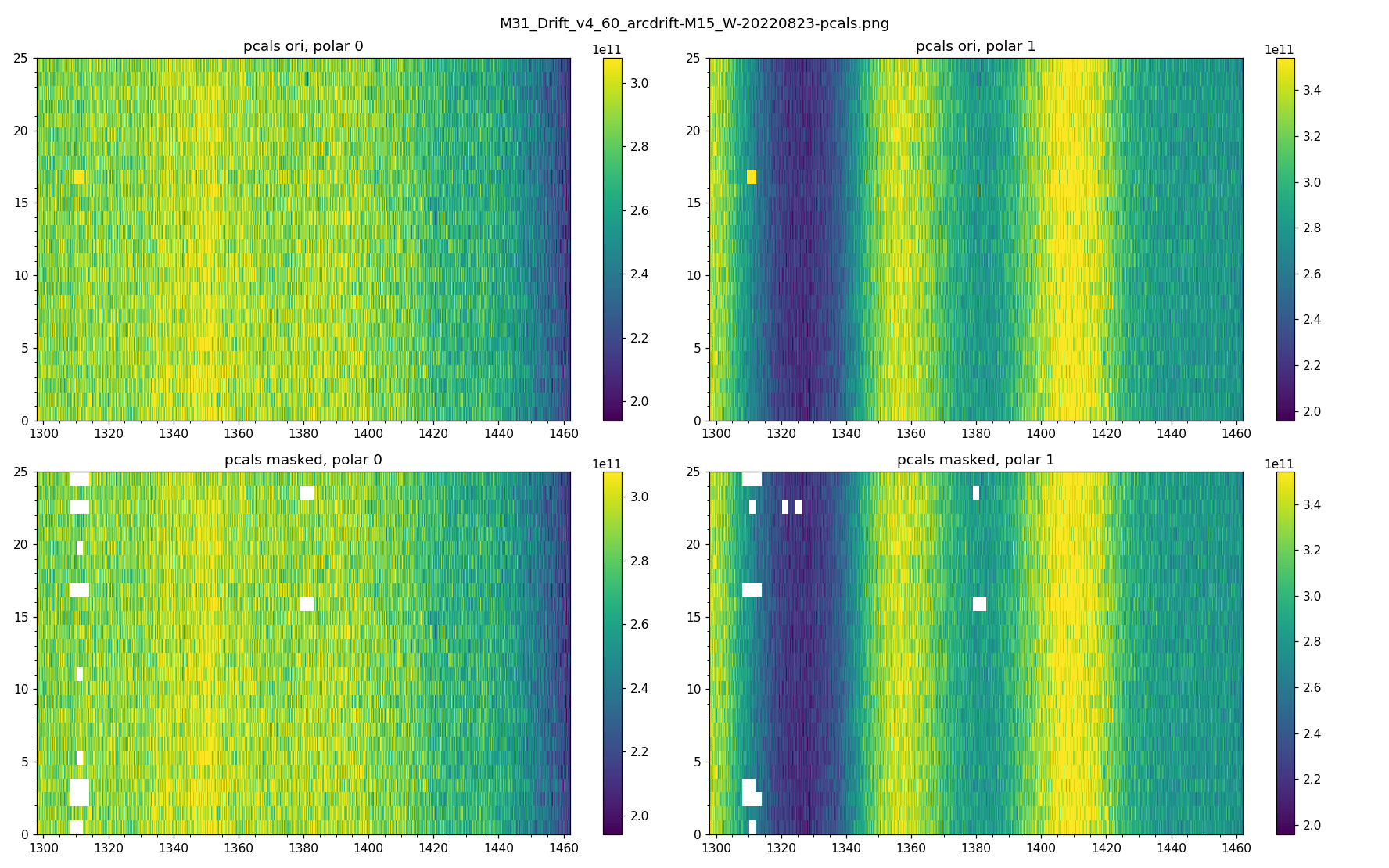

      _images/sep-pcals.png

    • Calibrating each spectral line with \(P_{\mathrm{cal}}\):

      • Method one: Individual processing (--merge_pcals False). Each spectral line is calibrated using the nearest \(P_{\mathrm{cal}}\) (smoothed to reduce noise). If the nearest is damaged, it searches for the next undamaged one. If the distance to the nearest Cal_on exceeds --cal_dis_lim, the line’s temperature is marked as nan.

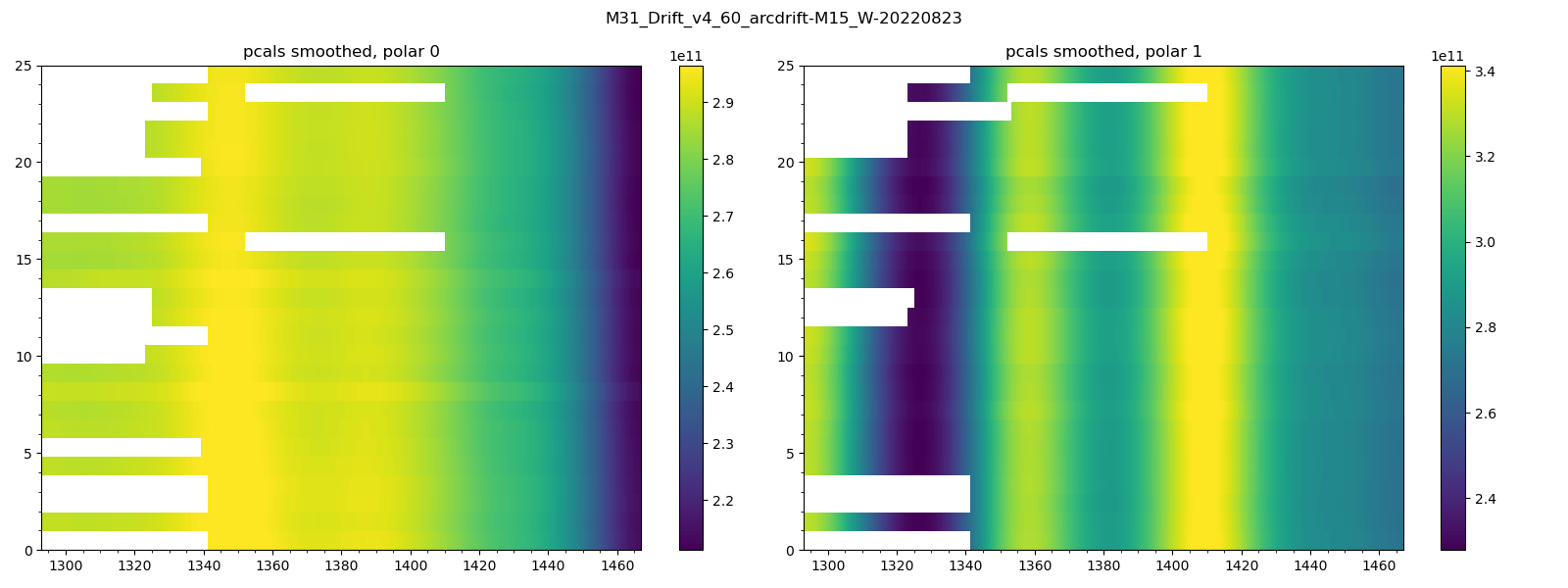

        _images/sep-pcals-smooth.png

      • Method two: Merge for frequency dependence (--merge_pcals True). \(P_{\mathrm{cal}}\)’s frequency dependence over time is relatively stable, only varying in amplitude:

        \[P_{\mathrm{cal}}(t,\nu) = Amp(t)*F(\nu)\]

        All \(P_{\mathrm{cal}}\) are merged (--method_merge MergeFun) and smoothed to obtain frequency dependence:

        \[F(\nu)_{\mathrm{smooth}} = \mathrm{SmooothFun}(\mathrm{MergeFun}(P_{\mathrm{cal,i}}(\nu)))\]

        Am

plitude deviations are calculated (--squeeze_diff_freq SqueezeFreqFun), and interpolated for each spectral line j (--method_interp InterpFun):

\[P_{\mathrm{cal,j}}(\nu) = \mathrm{InterpFun}(\mathrm{AmpDiff_{i}})*F(\nu)_{\mathrm{smooth}}\]

Output images showcase \(P_{\mathrm{cal}}\) variations and interpolation results.

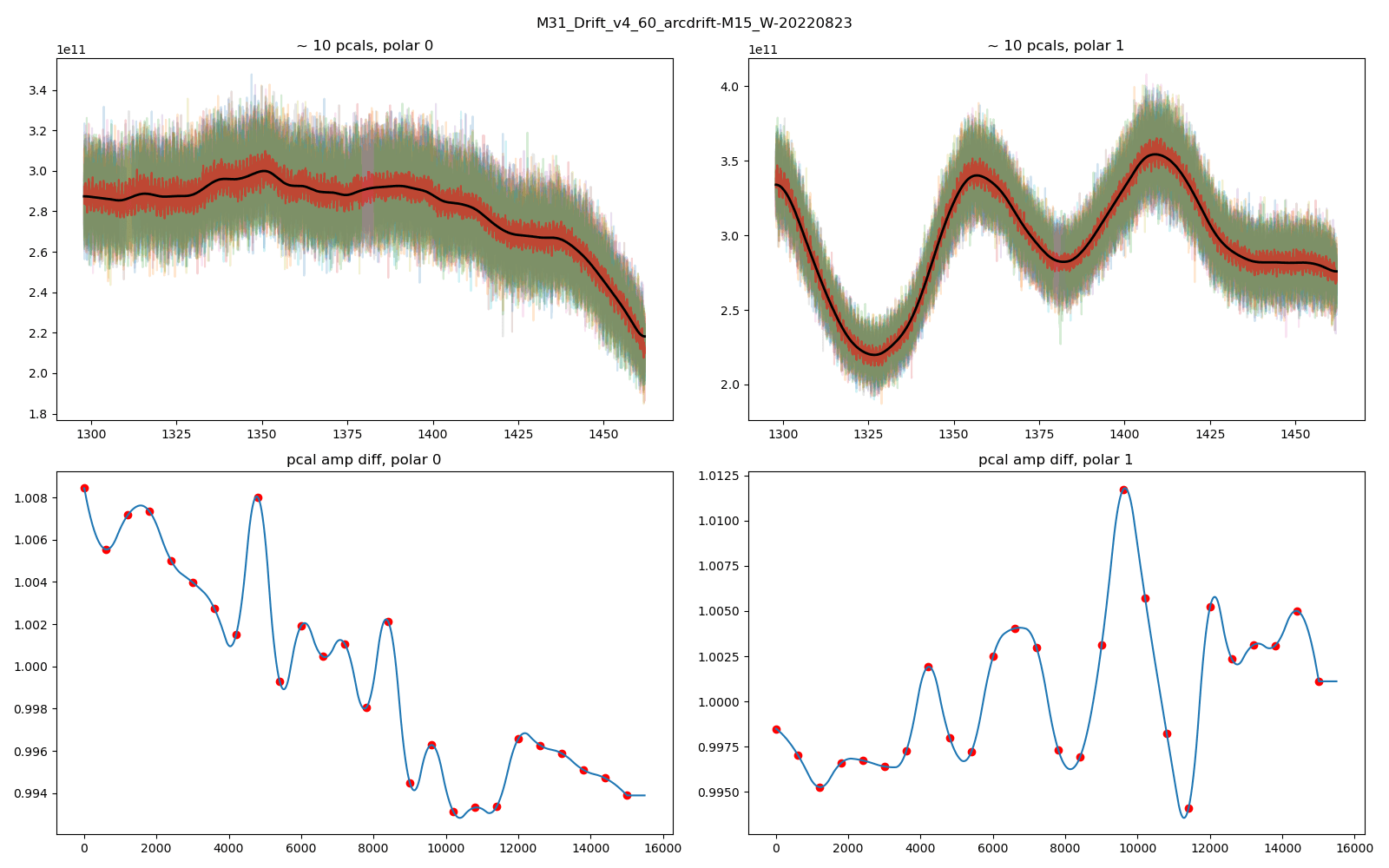

_images/sep-pcals-merged.png

  • Smoothing parameters (SmooothFun): - --smooth: Smoothing method options: gaussian, poly, or mean. - --s_sigma: Required for gaussian smoothing, unit MHz. - Gaussian smoothing is ideal for large frequency intervals; mean is for smaller intervals; poly fits polynomially with --s_deg.

Parameters#

Use python -m hifast.sep -h | more for detailed parameter descriptions.

  • -d, -m, -n: Delay, Cal on, and Cal off times, divided by spectral line sampling time.

  • --step: Number of file blocks loaded into memory per iteration.

  • --frange: Frequency range processed by the program, in MHz.

  • --ext_frange: Extends frange for gaussian smoothing.

  • --dfactor: Reduces frequency sampling rate.

  • --outdir: Directory path for output files.

  • …

Output#

  • Output files end with specs_T.hdf5, readable with h5py. For example:

    import h5py
f = h5py.File('data/XXX_arcdrift-M02_F-specs_T.hdf5', 'r')
S = f['S']
print(list(S.keys()))
print(S['mjd'][:])

  • Additionally, images are generated for Cal verification.
